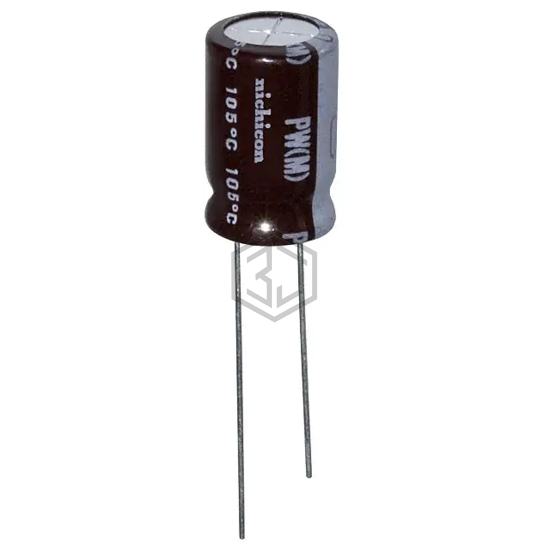

CAP ALUM 47UF 20% 100V RADIAL
UPW2A470MPH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 4,298
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 126 mA @ 120 Hz |
| Ripple Current @ High Frequency | 420 mA @ 100 kHz |
| Impedance | 370 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW2A470MPH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213659479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 100V RADIAL | 92% | View |
| UPS2A470MPD1AA | Nichicon | CAP ALUM 100V POLAR | 88% | View |
| EKMQ101ETC470MHB5D | United Chemi-Con | CAP ALUM 47UF 20% 100V RADIAL | 85% | View |
| MAL213668479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 63V RADIAL | 73% | View |
| EEU-FC1J470B | Panasonic Electronic Components | CAP ALUM 47UF 20% 63V RADIAL | 71% | View |
| ELXV630EC3470MH12D | United Chemi-Con | CAP ALUM 47UF 20% 63V RADIAL | 58% | View |
Submit your RFQ for UPW2A470MPH and get a quote within 24 hours.
