CAP ALUM 47UF 20% 100V RADIAL

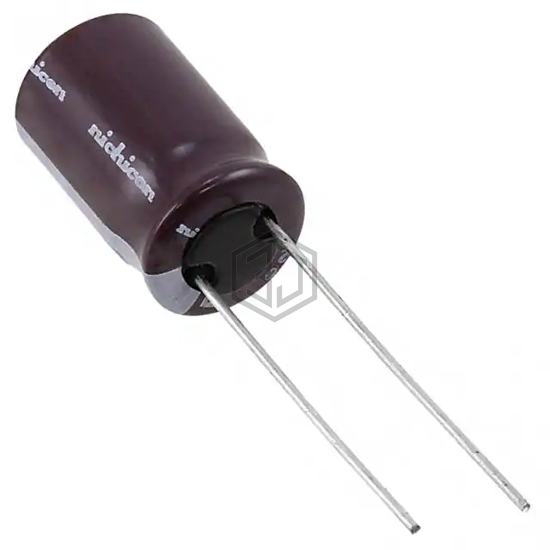

UPW2A470MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 102
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 126 mA @ 120 Hz |
| Ripple Current @ High Frequency | 420 mA @ 100 kHz |
| Impedance | 370 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW2A470MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URZ2A470MPD | Nichicon | CAP ALUM 47UF 20% 100V RADIAL | 88% | View |
| UPW1J470MPD1TD | Nichicon | CAP ALUM 47UF 20% 63V RADIAL | 85% | View |
| URZ1J470MPD1TD | Nichicon | CAP ALUM 47UF 20% 63V RADIAL | 71% | View |
| 63YXA47M6.3X11 | Rubycon | CAP ALUM 47UF 20% 63V RADIAL | 67% | View |
| MAL211661479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 50V RADIAL | 66% | View |
| 672D476H040CD5D | Vishay Sprague | CAP ALUM 47UF 40V RADIAL | 56% | View |
