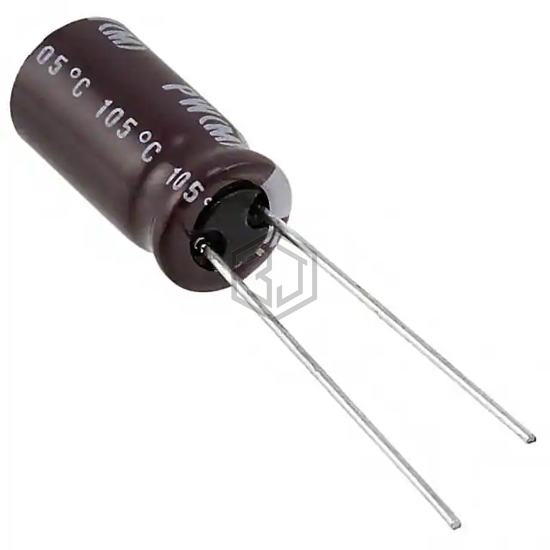

CAP ALUM 33UF 20% 100V RADIAL
UPW2A330MPD6TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 6,189
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 108 mA @ 120 Hz |
| Ripple Current @ High Frequency | 360 mA @ 100 kHz |
| Impedance | 450 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW2A330MPD6TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECA-2AHG330BJ | Panasonic Electronic Components | CAP ALUM 33UF 20% 100V RADIAL | 88% | View |
| UVY2A330MPD1TD | Nichicon | CAP ALUM 33UF 20% 100V RADIAL | 88% | View |
| MALREKB00BA233J00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 63V RADIAL | 79% | View |
| 336KXM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33UF 20% 50V RADIAL | 56% | View |
| EKMA350ELL330MF07D | United Chemi-Con | CAP ALUM 33UF 20% 35V RADIAL | 54% | View |
| EEA-GA1H330 | Panasonic Electronic Components | CAP ALUM 33UF 20% 50V RADIAL | 52% | View |
Submit your RFQ for UPW2A330MPD6TA and get a quote within 24 hours.
