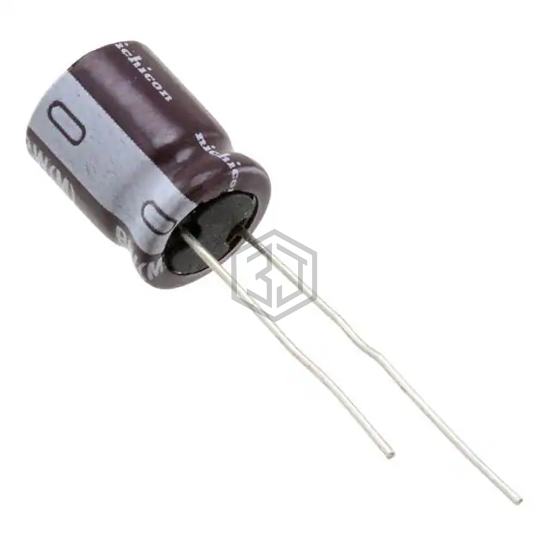

CAP ALUM 33UF 20% 100V RADIAL
UPW2A330MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 3,157
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 96 mA @ 120 Hz |
| Ripple Current @ High Frequency | 320 mA @ 100 kHz |
| Impedance | 460 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW2A330MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECA-2AHG330BJ | Panasonic Electronic Components | CAP ALUM 33UF 20% 100V RADIAL | 88% | View |
| UPM1K330MPD1TD | Nichicon | CAP ALUM 33UF 20% 80V RADIAL | 80% | View |
| EY2A330MQS0811ERS | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 78% | View |
| ECA-1JHG330B | Panasonic Electronic Components | CAP ALUM 33UF 20% 63V RADIAL | 74% | View |
| UVZ1J330MEH | Nichicon | CAP ALUM 33UF 20% 63V RADIAL | 74% | View |
| ECA-1HHG330 | Panasonic Electronic Components | CAP ALUM 33UF 20% 50V RADIAL | 64% | View |
