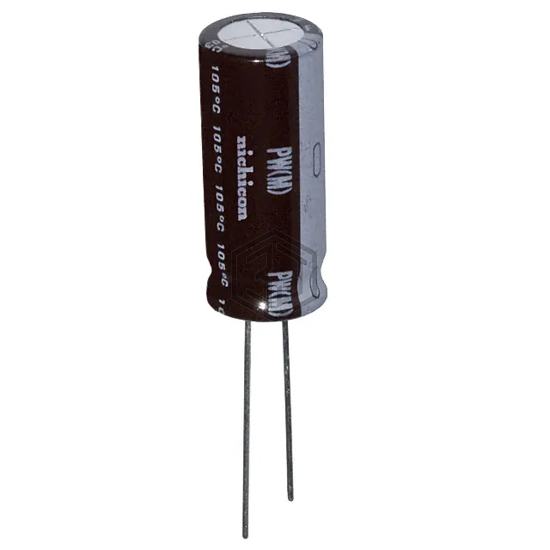

CAP ALUM 180UF 20% 100V RADIAL
UPW2A181MHH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 9,694
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 513.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 790 mA @ 100 kHz |
| Impedance | 120 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW2A181MHH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41858C9187M008 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 100V RADIAL | 89% | View |
| UPJ2A181MHD6TN | Nichicon | CAP ALUM 180UF 20% 100V RADIAL | 88% | View |
| EEU-FC1H181L | Panasonic Electronic Components | CAP ALUM 180UF 20% 50V RADIAL | 78% | View |
| 672D187H050DS5J | Vishay Sprague | CAP ALUM 180UF 50V RADIAL | 56% | View |
| 672D187H050DS2R | Vishay Sprague | CAP ALUM 180UF 50V RADIAL | 56% | View |
| 600D187G015DE5 | Vishay Sprague | CAP ALUM 180UF 15V AXIAL | 56% | View |
