CAP ALUM 1000UF 20% 100V RADIAL

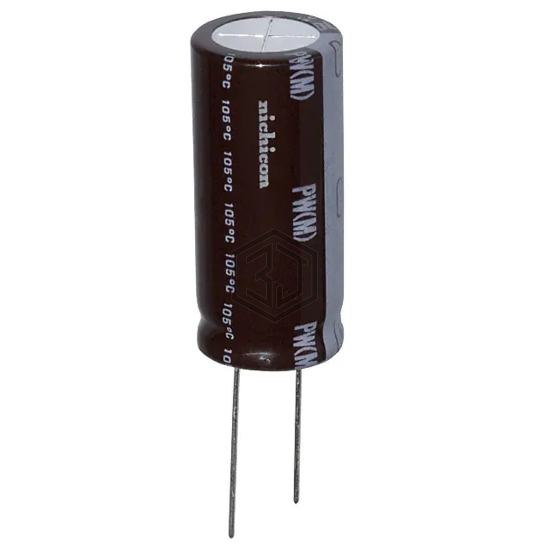

UPW2A102MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 5,942
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.14 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.52 A @ 100 kHz |
| Impedance | 47 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW2A102MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| KMG100VB102M18X40LL | United Chemi-Con | CAP ALUM 1000UF 20% 100V RADIAL | 96% | View |
| 63YXA1000MEFCKC16X25 | Rubycon | CAP ALUM 1000UF 20% 63V RADIAL | 83% | View |
| EEU-FC1E102SB | Panasonic Electronic Components | CAP ALUM 1000UF 20% 25V RADIAL | 76% | View |
| MAL214050102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 35V RADIAL | 67% | View |
| 50WXA1000MEFC16X20 | Rubycon | CAP ALUM 1000UF 20% 50V RADIAL | 65% | View |
| MAL211948102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 63V AXIAL | 65% | View |
