CAP ALUM 680UF 20% 35V RADIAL

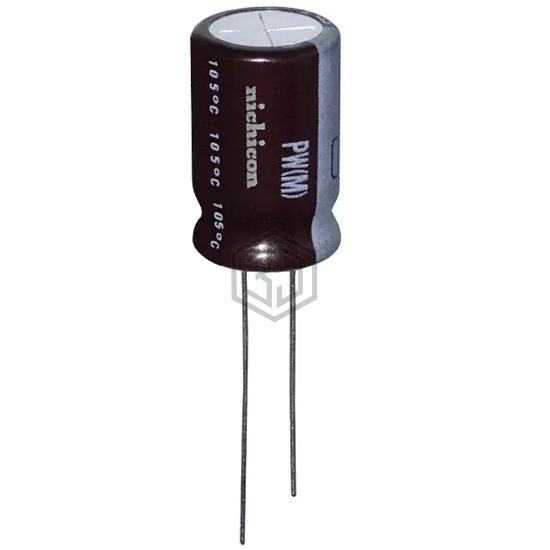

UPW1V681MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 1,242
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.245 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.66 A @ 100 kHz |
| Impedance | 38 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1V681MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW1V681MPH6 | Nichicon | CAP ALUM 680UF 20% 35V RADIAL | 96% | View |
| B41896C7687M000 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 35V RADIAL | 92% | View |
| MAL216030681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 35V RADIAL | 92% | View |
| B41695A7687Q9 | EPCOS - TDK Electronics | CAP ALUM 680UF 40V AXIAL | 74% | View |
| 672D687F6R3DM5D | Vishay Sprague | CAP ALUM 680UF 6.3V RADIAL | 56% | View |
| 672D687F012DT5D | Vishay Sprague | CAP ALUM 680UF 12V RADIAL | 56% | View |
