CAP ALUM 4700UF 20% 35V RADIAL

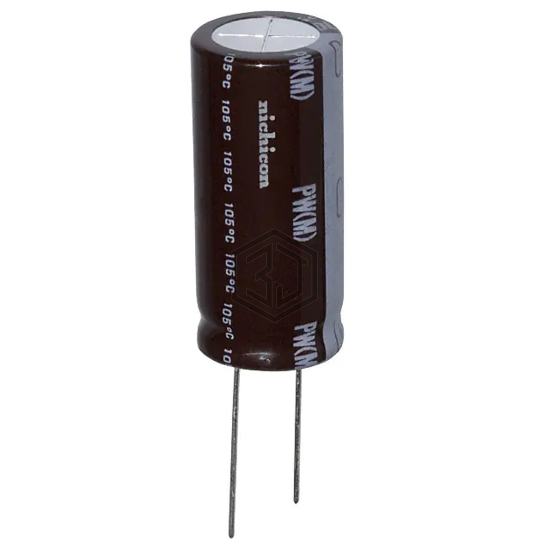

UPW1V472MHH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 9,930
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.23 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.8 A @ 100 kHz |
| Impedance | 14 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1V472MHH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50PX4700MEFC18X40 | Rubycon | CAP ALUM 4700UF 20% 50V RADIAL | 77% | View |
| MAL215066472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 25V RADIAL | 76% | View |
| 478RZM035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4700UF 20% 35V RADIAL | 75% | View |
| ELXZ100ELL472MK35S | United Chemi-Con | CAP ALUM 4700UF 20% 10V RADIAL | 59% | View |
| MAL211816472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 25V AXIAL | 54% | View |
| EEU-FK0J472 | Panasonic Electronic Components | CAP ALUM 4700UF 20% 6.3V RAD TH | 54% | View |
