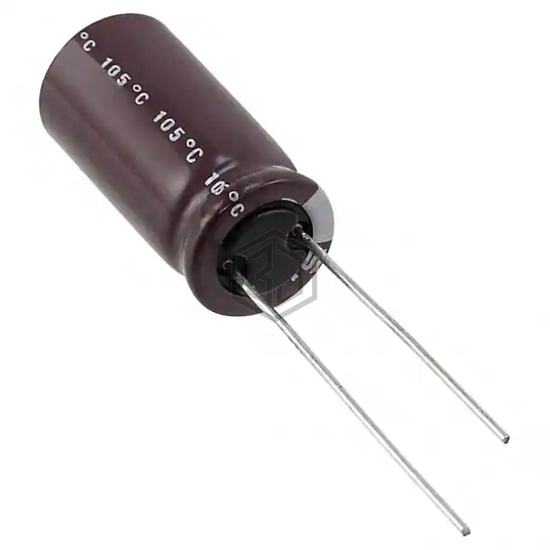

CAP ALUM 470UF 20% 35V RADIAL
UPW1V471MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 6,891
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 915 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.22 A @ 100 kHz |
| Impedance | 52 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1V471MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41858H8477M009 | EPCOS - TDK Electronics | SINGLE-ENDED 470UF 63V | 100% | View |
| 601D487G040FP3 | Vishay Sprague | CAP ALUM 480UF 40V AXIAL | 90% | View |
| EEU-FC1E471LB | Panasonic Electronic Components | CAP ALUM 470UF 20% 25V RADIAL | 80% | View |
| RJA471M1VBK-1016S | SURGE | CAP ALUM 470UF 20% 35V RADIAL | 78% | View |
| UVZ1V471MPD | Nichicon | CAP ALUM 470UF 20% 35V RADIAL | 78% | View |
| MAL215098475E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V RADIAL | 72% | View |
Submit your RFQ for UPW1V471MPD1TD and get a quote within 24 hours.
