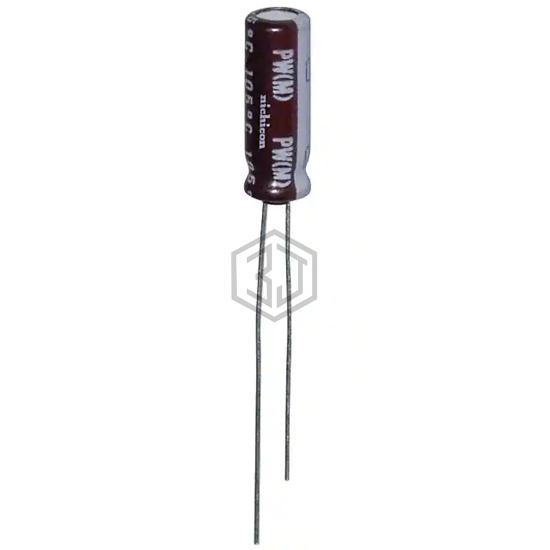

CAP ALUM 39UF 20% 35V RADIAL
UPW1V390MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 39UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 9,428
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 70.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 235 mA @ 100 kHz |
| Impedance | 500 mOhms |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1V390MDD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXY500ELL390MFB5D | United Chemi-Con | CAP ALUM 39UF 20% 50V RADIAL | 84% | View |
| UPM1V390MED1TD | Nichicon | CAP ALUM 39UF 20% 35V RADIAL | 83% | View |
| UPW1E390MDD6TE | Nichicon | CAP ALUM 39UF 20% 25V RADIAL | 83% | View |
| B41043A7396M | EPCOS - TDK Electronics | CAP ALUM 39UF 20% 35V RADIAL | 80% | View |
| 860080774007 | Würth Elektronik | CAP ALUM 39UF 20% 63V RADIAL | 66% | View |
| UPW1J390MDD | Nichicon | CAP ALUM 39UF 20% 63V RADIAL | 62% | View |
