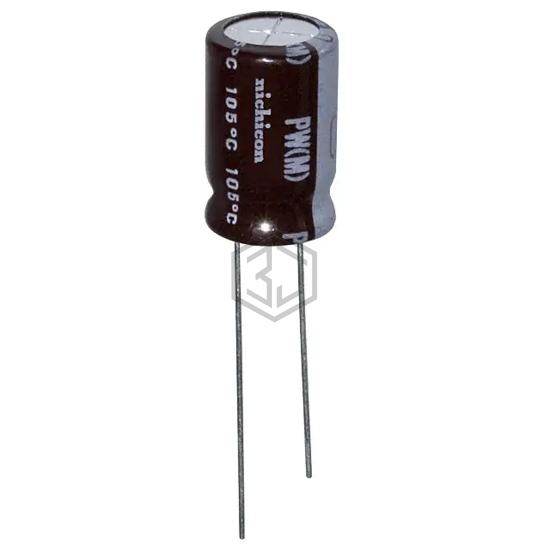

CAP ALUM 330UF 20% 35V RADIAL
UPW1V331MPH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 1,317
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 682.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.05 A @ 100 kHz |
| Impedance | 68 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1V331MPH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41858C7337M000 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 35V RADIAL | 87% | View |
| 35YXA330MEFC10X12.5 | Rubycon | CAP ALUM 330UF 20% 35V RADIAL | 83% | View |
| ELXZ630EC3331MK20S | United Chemi-Con | CAP ALUM 330UF 20% 63V RADIAL | 76% | View |
| 337RZM035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 330UF 20% 35V RADIAL | 75% | View |
| ELXZ250ELL331MH15D | United Chemi-Con | CAP ALUM 330UF 20% 25V RADIAL | 67% | View |
| EEU-FC1A331BJ | Panasonic Electronic Components | CAP ALUM 330UF 20% 10V RADIAL | 51% | View |
