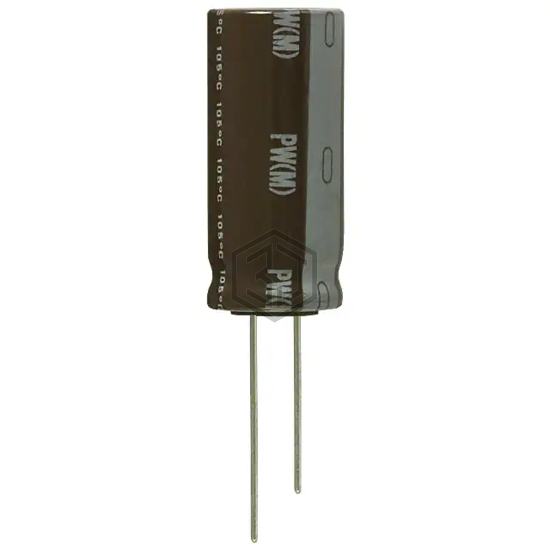

CAP ALUM 2700UF 20% 35V RADIAL
UPW1V272MHH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2700UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 1,057
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.678 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.15 A @ 100 kHz |
| Impedance | 16 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1V272MHH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LXY35VB272M16X40LL | United Chemi-Con | CAP ALUM 2700UF 20% 35V RADIAL | 93% | View |
| B41888C5278M002 | EPCOS - TDK Electronics | CAP ALUM 2700UF 20% 25V RADIAL | 86% | View |
| UPW1E272MHD1TN | Nichicon | CAP ALUM 2700UF 20% 25V RADIAL | 78% | View |
| EEU-FK1C272B | Panasonic Electronic Components | CAP ALUM 2700UF 20% 16V RAD TH | 63% | View |
| B41607B7278M9 | EPCOS - TDK Electronics | CAP ALUM 2700UF 20% 40V RADIAL | 59% | View |
| 301272U7R5L042E | Cornell Dubilier Electronics (CDE) | CAP ALUM 2700UF 7.5V RADIAL | 56% | View |
