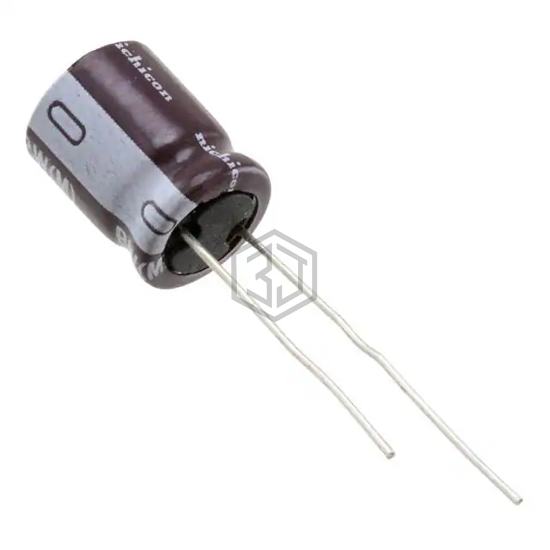

CAP ALUM 220UF 20% 35V RADIAL
UPW1V221MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 4,089
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 494 mA @ 120 Hz |
| Ripple Current @ High Frequency | 760 mA @ 100 kHz |
| Impedance | 90 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1V221MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 227KXM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 220UF 20% 50V RADIAL | 76% | View |
| B41896C6227M001 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 50V RADIAL | 70% | View |
| EKMG500ETD221MJC5S | United Chemi-Con | CAP ALUM 220UF 20% 50V RADIAL | 65% | View |
| EKMG500EC3221MJC5S | United Chemi-Con | CAP ALUM 220UF 20% 50V RADIAL | 65% | View |
| EJ1E221MLT0812UR | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 60% | View |
| MAL214035221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 16V RADIAL | 53% | View |
Submit your RFQ for UPW1V221MPD1TD and get a quote within 24 hours.
