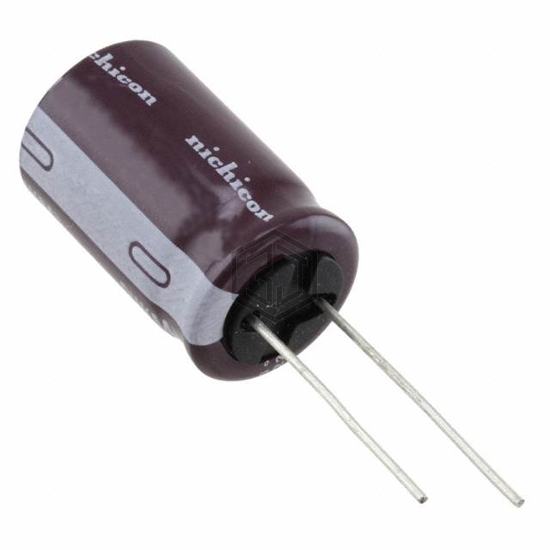

CAP ALUM 1500UF 20% 35V RADIAL
UPW1V152MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 3,741
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.555 A @ 100 kHz |
| Impedance | 22 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1V152MHD1TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXK152M1HBK-1640S | Surge | CAP ALUM 50V POLAR | 87% | View |
| B41858C6158M9 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 50V RADIAL | 79% | View |
| MAL226036152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 25V RADIAL | 74% | View |
| ELXZ630ELL152MM35S | United Chemi-Con | CAP ALUM 1500UF 20% 63V RADIAL | 70% | View |
| 158KXM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1500UF 20% 50V RADIAL | 66% | View |
| 158KXM010M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1500UF 20% 10V RADIAL | 54% | View |
Submit your RFQ for UPW1V152MHD1TN and get a quote within 24 hours.
