CAP ALUM 6.8UF 20% 63V RADIAL

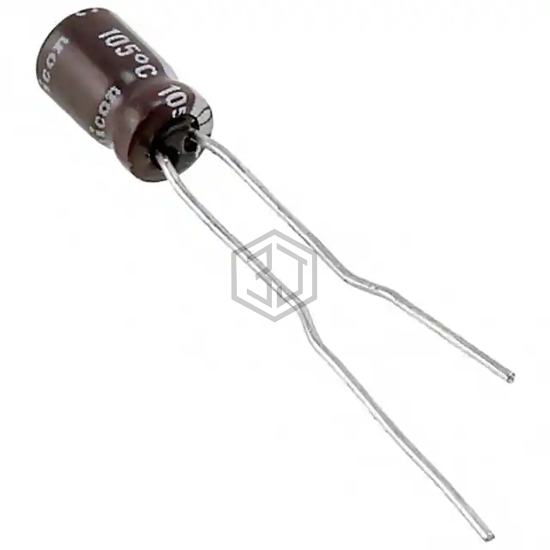

UPW1J6R8MDD6TP is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6.8UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 8,158
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6.8 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 24 mA @ 120 Hz |
| Ripple Current @ High Frequency | 80 mA @ 100 kHz |
| Impedance | 3.5 Ohms |
| Lead Spacing | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1J6R8MDD6TP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW1J6R8MDD1TD | Nichicon | CAP ALUM 6.8UF 20% 63V RADIAL | 89% | View |
| UPV1H6R8MFD | Nichicon | CAP ALUM 6.8UF 20% 50V RADIAL | 81% | View |
| UPJ1H6R8MDD1TA | Nichicon | CAP ALUM 6.8UF 20% 50V RADIAL | 70% | View |
| MAL211631688E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6.8UF 20% 50V RADIAL | 69% | View |
| UPW1V6R8MDD1TP | Nichicon | CAP ALUM 6.8UF 20% 35V RADIAL | 69% | View |
| 672D685H150CG5C | Vishay Sprague | CAP ALUM 6.8UF 150V RADIAL | 56% | View |
