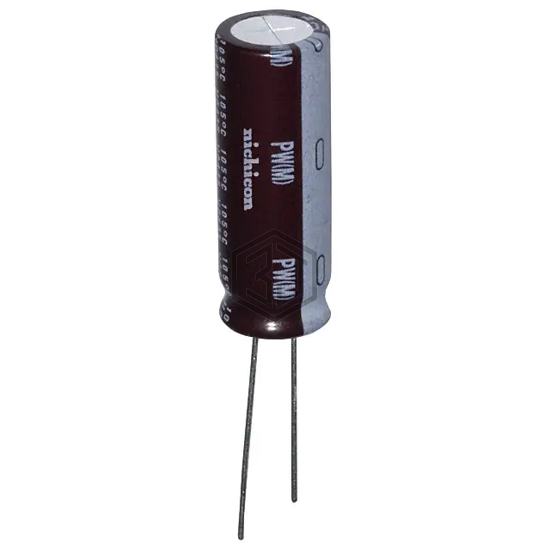

CAP ALUM 680UF 20% 63V RADIAL
UPW1J681MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 2,221
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.703 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.27 A @ 100 kHz |
| Impedance | 47 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1J681MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LXZ63VB681M18X20LL | United Chemi-Con | CAP ALUM 680UF 20% 63V RADIAL | 93% | View |
| B41858C6687M000 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 50V RADIAL | 89% | View |
| B41695A8687Q7 | EPCOS - TDK Electronics | CAP ALUM 680UF 63V AXIAL | 86% | View |
| 672D667H012DM5G | Vishay Sprague | CAP ALUM 660UF 12V RAD | 53% | View |
| 601D667G020HE2 | Vishay Sprague | CAP ALUM 660UF 20V AXIAL | 53% | View |
| 678D667H010DG5J | Vishay Sprague | CAP ALUM 660UF 10V RADIAL | 53% | View |
