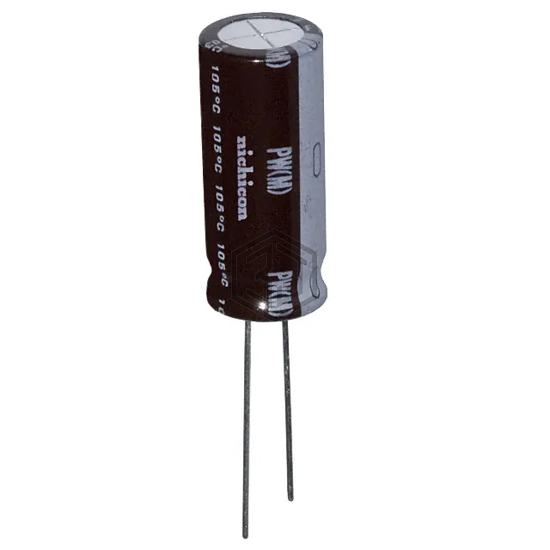

CAP ALUM 470UF 20% 63V RADIAL
UPW1J471MHH6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 7,484
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.568 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.09 A @ 100 kHz |
| Impedance | 55 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1J471MHH6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 601D507G050GL1 | Vishay Sprague | CAP ALUM 500UF 50V AXIAL | 80% | View |
| 601D507G050FS2 | Vishay Sprague | CAP ALUM 500UF 50V AXIAL | 80% | View |
| MAL215098475E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V RADIAL | 78% | View |
| 601D487G040FP3 | Vishay Sprague | CAP ALUM 480UF 40V AXIAL | 69% | View |
| 601D507F100JT1 | Vishay Sprague | CAP ALUM 500UF 100V AXIAL | 65% | View |
| 601D507G025HE1 | Vishay Sprague | CAP ALUM 500UF 25V AXIAL | 51% | View |
Submit your RFQ for UPW1J471MHH6 and get a quote within 24 hours.
