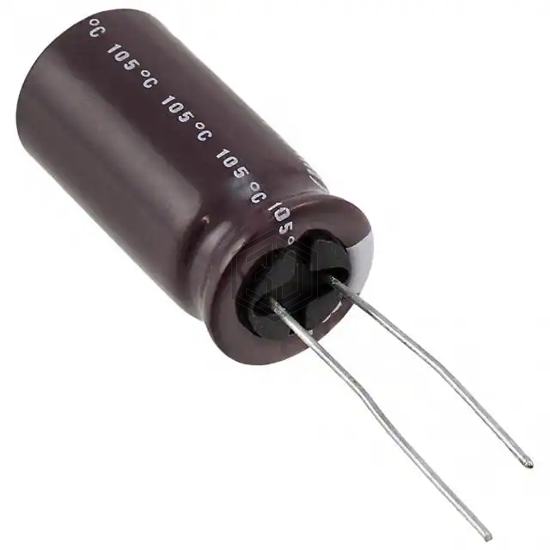

CAP ALUM 390UF 20% 63V RADIAL
UPW1J391MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 9,572
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.29 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.72 A @ 100 kHz |
| Impedance | 70 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1J391MHD1TO is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ1J391MHD6 | Nichicon | CAP ALUM 390UF 20% 63V RADIAL | 95% | View |
| B41042A8397M | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 63V RADIAL | 86% | View |
| UPM2A391MHD6 | Nichicon | CAP ALUM 390UF 20% 100V RADIAL | 83% | View |
| B41689K8397Q001 | EPCOS - TDK Electronics | CAP ALUM 390UF 63V AXIAL | 74% | View |
| 672D397H040ET5J | Vishay Sprague | CAP ALUM 390UF 40V RADIAL | 71% | View |
| 601D397F100GL1 | Vishay Sprague | CAP ALUM 390UF 100V AXIAL | 70% | View |
