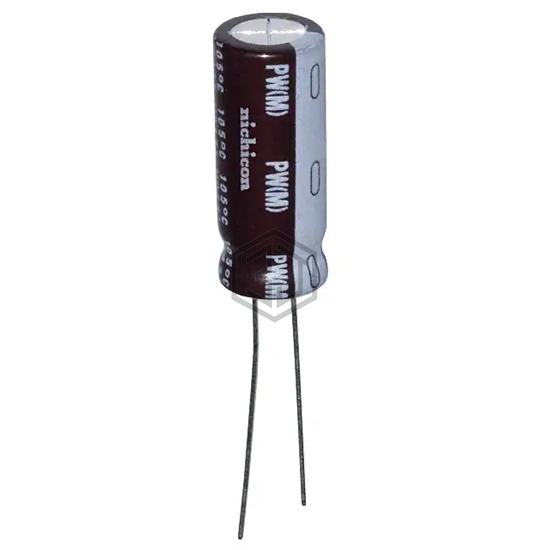

CAP ALUM 220UF 20% 63V RADIAL
UPW1J221MPH6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 5,304
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 682.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.05 A @ 100 kHz |
| Impedance | 130 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1J221MPH6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 227KXM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 220UF 20% 50V RADIAL | 88% | View |
| MAL215058221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 63V RADIAL | 87% | View |
| B41896C6227M001 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 50V RADIAL | 77% | View |
| EKMG500ETD221MJC5S | United Chemi-Con | CAP ALUM 220UF 20% 50V RADIAL | 53% | View |
| EKMG500EC3221MJC5S | United Chemi-Con | CAP ALUM 220UF 20% 50V RADIAL | 53% | View |
| MAL214035221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 16V RADIAL | 51% | View |
