CAP ALUM 22UF 20% 63V RADIAL

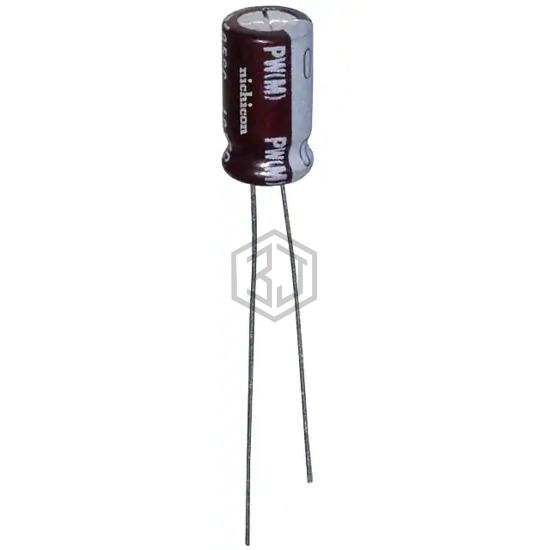

UPW1J220MED is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 5,120
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 250 mA @ 100 kHz |
| Impedance | 710 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1J220MED is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41866C6226M006 | EPCOS - TDK Electronics | CAP ALUM 50V POLAR | 85% | View |
| MAL211690039E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 50V RADIAL | 76% | View |
| UVY1H220MDD | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 76% | View |
| UEP2A220MPD | Nichicon | CAP ALUM 22UF 20% 100V RADIAL | 74% | View |
| MAL212367229 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 40V AXIAL | 68% | View |
| 860160472003 | Würth Elektronik | CAP ALUM 22UF 20% 25V RADIAL | 57% | View |
