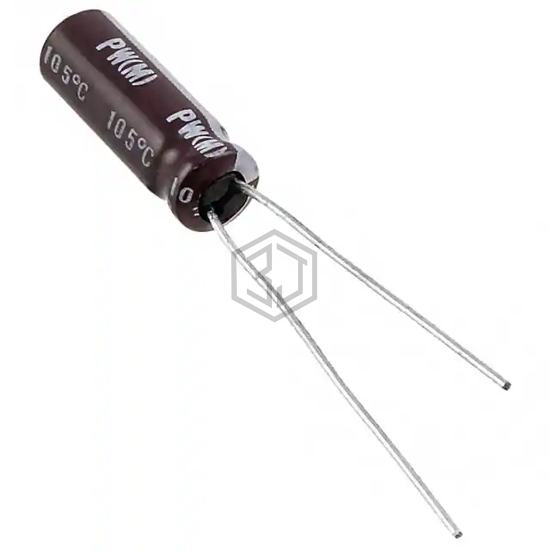

CAP ALUM 18UF 20% 63V RADIAL
UPW1J180MDD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 18UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 8,033
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 18 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 60 mA @ 120 Hz |
| Ripple Current @ High Frequency | 200 mA @ 100 kHz |
| Impedance | 1.3 Ohms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1J180MDD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW1H180MDD1TA | Nichicon | CAP ALUM 18UF 20% 50V RADIAL | 85% | View |
| UPJ1J180MED1TD | Nichicon | CAP ALUM 18UF 20% 63V RADIAL | 85% | View |
| UPW1H180MDD1TD | Nichicon | CAP ALUM 18UF 20% 50V RADIAL | 85% | View |
| B41896C6186M000 | EPCOS - TDK Electronics | CAP ALUM 50V POLAR | 82% | View |
| B41896C6186M008 | EPCOS - TDK Electronics | CAP ALUM 50V POLAR | 82% | View |
| UPM1J180MED1TD | Nichicon | CAP ALUM 18UF 20% 63V RADIAL | 80% | View |
Submit your RFQ for UPW1J180MDD1TA and get a quote within 24 hours.
