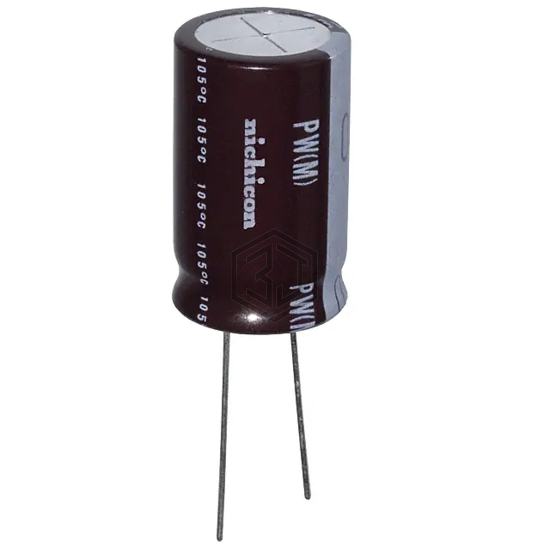

CAP ALUM 1200UF 20% 63V RADIAL
UPW1J122MHH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1200UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 9,317
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.508 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.95 A @ 100 kHz |
| Impedance | 32 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1J122MHH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1H122 | Panasonic Electronic Components | CAP ALUM 1200UF 20% 50V RADIAL | 87% | View |
| 301R122M050GS2 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1200UF 20% 50V RADIAL | 85% | View |
| B41890A6128M | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 50V RADIAL | 85% | View |
| ELXZ500ELL122ML30S | United Chemi-Con | CAP ALUM 1200UF 20% 50V RADIAL | 81% | View |
| MAL224661122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 50V RADIAL | 74% | View |
| 601D128G040GT2 | Vishay Sprague | CAP ALUM 1200UF 40V AXIAL | 71% | View |
Submit your RFQ for UPW1J122MHH and get a quote within 24 hours.
