CAP ALUM 560UF 20% 50V RADIAL

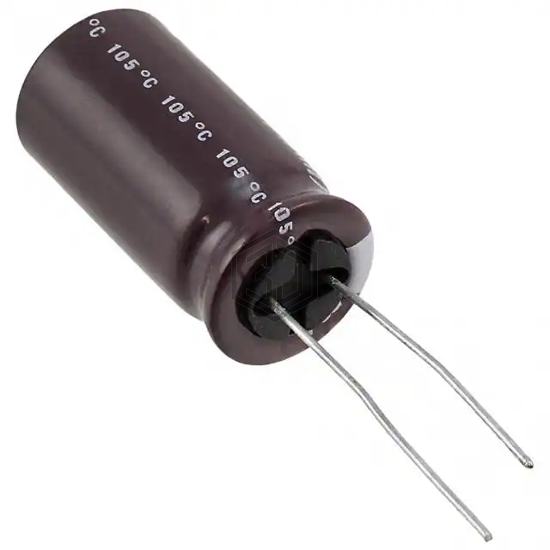

UPW1H561MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 1,029
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.374 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.832 A @ 100 kHz |
| Impedance | 50 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1H561MHD1TO is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1H561SB | Panasonic Electronic Components | CAP ALUM 560UF 20% 50V RADIAL | 95% | View |
| B41888C6567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 50V RADIAL | 94% | View |
| EEU-FC1J561B | Panasonic Electronic Components | CAP ALUM 560UF 20% 63V RADIAL | 87% | View |
| ELXV800ELL561ML35S | United Chemi-Con | CAP ALUM 560UF 20% 80V RADIAL | 79% | View |
| EEU-FK1E561L | Panasonic Electronic Components | CAP ALUM 560UF 20% 25V RADIAL TH | 63% | View |
| EEU-FK1E561LB | Panasonic Electronic Components | CAP ALUM 560UF 20% 25V RADIAL TH | 63% | View |
Submit your RFQ for UPW1H561MHD1TO and get a quote within 24 hours.
