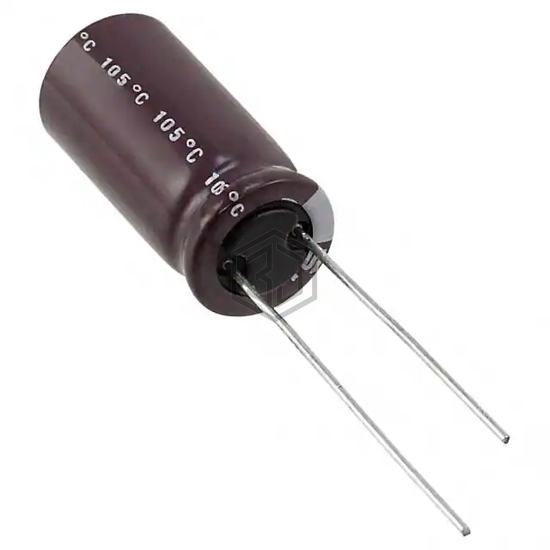

CAP ALUM 330UF 20% 50V RADIAL
UPW1H331MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 3,073
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 669.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.03 A @ 100 kHz |
| Impedance | 90 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1H331MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXZ500ETD331MJ25S | United Chemi-Con | CAP ALUM 330UF 20% 50V RADIAL | 92% | View |
| MAL213668331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 63V RADIAL | 86% | View |
| 672D337H040ET5O | Vishay Sprague | CAP ALUM 330UF 40V RADIAL | 86% | View |
| ELXY350ETD331MJ20S | United Chemi-Con | CAP ALUM 330UF 20% 35V RADIAL | 81% | View |
| B41858C7337M002 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 35V RADIAL | 80% | View |
| EKMG630ELL331MJ20S | United Chemi-Con | CAP ALUM 330UF 20% 63V RADIAL | 79% | View |
