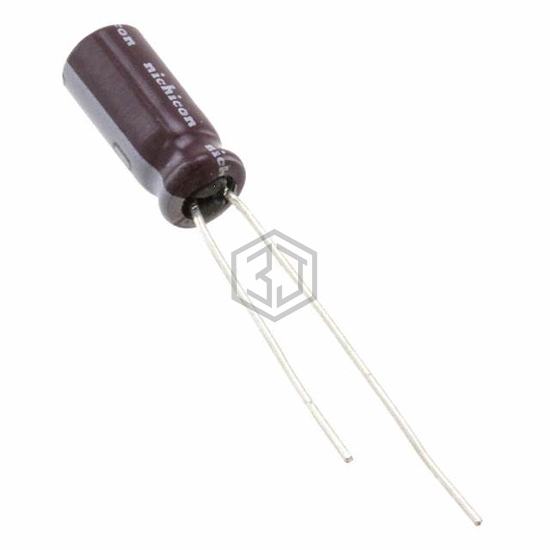

CAP ALUM 2.2UF 20% 50V RADIAL
UPW1H2R2MDD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2.2UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 16,655
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 16.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 55 mA @ 100 kHz |
| Impedance | 3 Ohms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1H2R2MDD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVZ1H2R2MDD1TD | Nichicon | CAP ALUM 2.2UF 20% 50V RADIAL | 88% | View |
| UEP1H2R2MDD1TA | Nichicon | CAP ALUM 2.2UF 20% 50V RADIAL | 88% | View |
| EEU-HD1H2R2 | Panasonic Electronic Components | CAP ALUM 2.2UF 20% 50V RADIAL | 88% | View |
| UPV1H2R2MFD | Nichicon | CAP ALUM 2.2UF 20% 50V RADIAL | 81% | View |
| 50YXA2R2MTA5X11 | Rubycon | CAP ALUM 2.2UF 20% 50V RADIAL | 81% | View |
| EEU-FC2A2R2B | Panasonic Electronic Components | CAP ALUM 2.2UF 20% 100V RADIAL | 61% | View |
