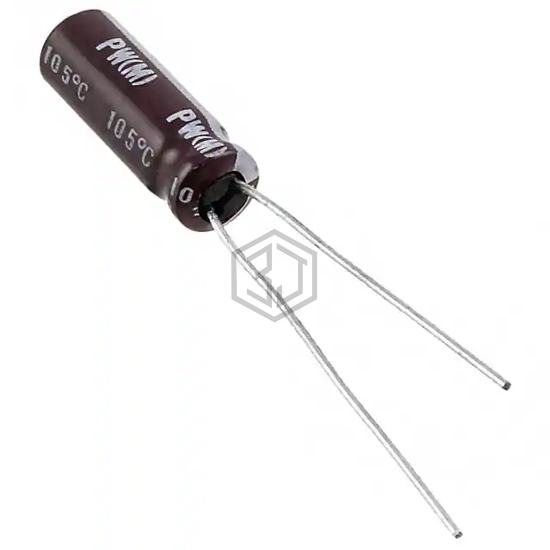

CAP ALUM 27UF 20% 50V RADIAL
UPW1H270MDD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 27UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 6,212
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 27 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 64.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 215 mA @ 100 kHz |
| Impedance | 900 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1H270MDD1TD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41896C6276M008 | EPCOS - TDK Electronics | CAP ALUM 50V POLAR | 91% | View |
| UPJ1H270MED1TD | Nichicon | CAP ALUM 27UF 20% 50V RADIAL | 86% | View |
| UPM1H270MED1TA | Nichicon | CAP ALUM 27UF 20% 50V RADIAL | 81% | View |
| EEU-FC1V270B | Panasonic Electronic Components | CAP ALUM 27UF 20% 35V RADIAL | 73% | View |
| EEA-FC1V270H | Panasonic Electronic Components | CAP ALUM 27UF 20% 35V RADIAL | 66% | View |
| 860160372004 | Würth Elektronik | CAP ALUM 27UF 20% 16V RADIAL | 58% | View |
Submit your RFQ for UPW1H270MDD1TD and get a quote within 24 hours.
