CAP ALUM 27UF 20% 50V RADIAL

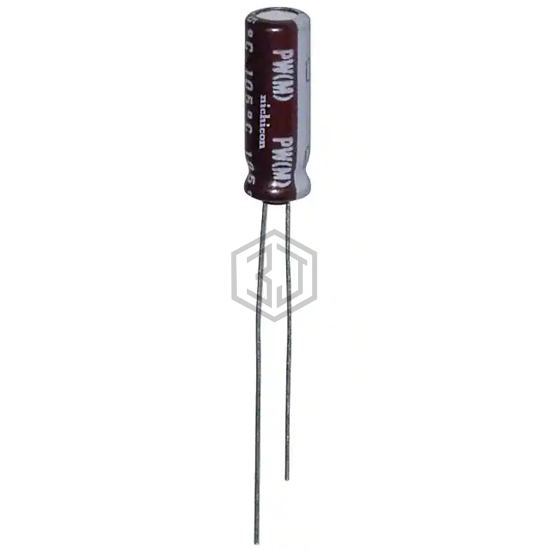

UPW1H270MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 27UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 2,567
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 27 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 64.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 215 mA @ 100 kHz |
| Impedance | 900 mOhms |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1H270MDD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPV1H270MGD1TA | Nichicon | CAP ALUM 27UF 20% 50V RADIAL | 97% | View |
| B41896C6276M006 | EPCOS - TDK Electronics | CAP ALUM 50V POLAR | 91% | View |
| 860080673002 | Würth Elektronik | CAP ALUM 27UF 20% 50V RADIAL | 79% | View |
| 860080773005 | Würth Elektronik | CAP ALUM 27UF 20% 63V RADIAL | 79% | View |
| RXK270M1VBK-0511S | Surge | CAP ALUM 35V POLAR | 75% | View |
| 276KXM100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 27UF 20% 100V RADIAL | 61% | View |
