CAP ALUM 180UF 20% 50V RADIAL

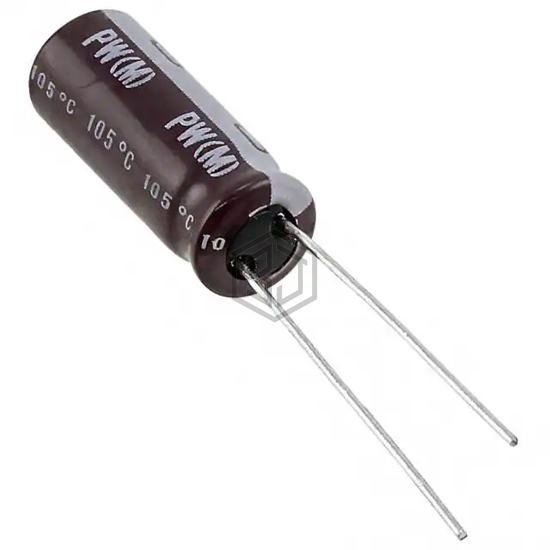

UPW1H181MPD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 2,682
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 559 mA @ 120 Hz |
| Ripple Current @ High Frequency | 860 mA @ 100 kHz |
| Impedance | 120 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1H181MPD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1H181 | Panasonic Electronic Components | CAP 180UF 50V ELECT | 100% | View |
| B41858C6187M8 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 50V RADIAL | 93% | View |
| 860160675025 | Würth Elektronik | CAP ALUM 180UF 20% 50V RADIAL | 89% | View |
| ELXY500ELL181MJ20S | United Chemi-Con | CAP ALUM 180UF 20% 50V RADIAL | 86% | View |
| EEU-FK1V181 | Panasonic Electronic Components | CAP ALUM 180UF 20% 35V RADIAL TH | 76% | View |
| 860080474009 | Würth Elektronik | CAP ALUM 180UF 20% 25V RADIAL | 64% | View |
Submit your RFQ for UPW1H181MPD1TA and get a quote within 24 hours.
