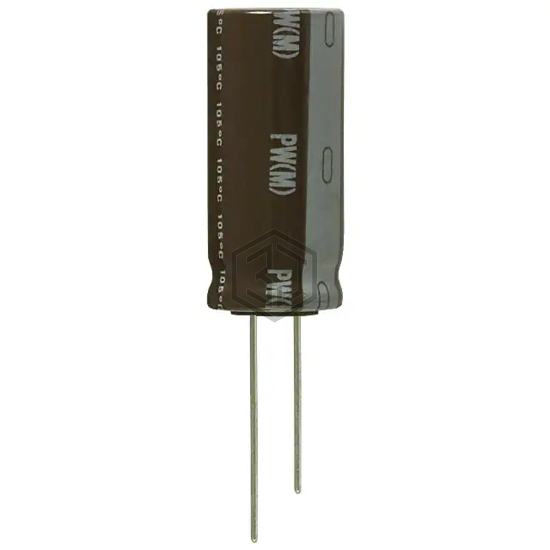

CAP ALUM 1500UF 20% 50V RADIAL
UPW1H152MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 492
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.372 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.79 A @ 100 kHz |
| Impedance | 25 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1H152MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMG500ELL152MLN3S | United Chemi-Con | CAP ALUM 1500UF 20% 50V RADIAL | 100% | View |
| 604D152G040JL7 | Vishay Sprague | CAP ALUM 1500UF 40V AXIAL | 86% | View |
| MAL215090186E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 35V RADIAL | 76% | View |
| MAL215050152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 35V RADIAL | 72% | View |
| EEU-FC1E152SB | Panasonic Electronic Components | CAP ALUM 1500UF 20% 25V RADIAL | 69% | View |
| 860080275018 | Würth Elektronik | CAP ALUM 1500UF 20% 10V RADIAL | 59% | View |
