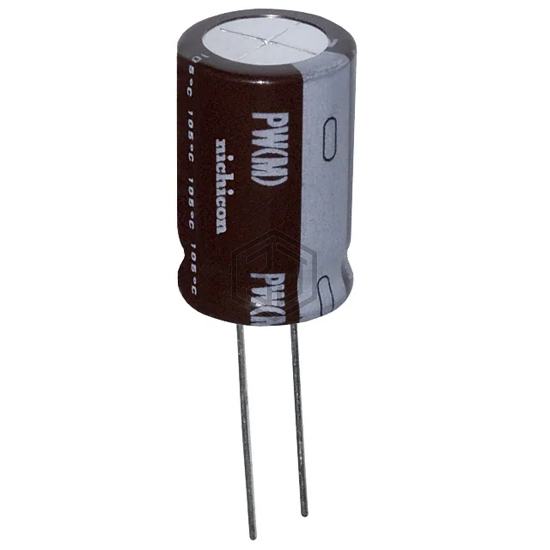

CAP ALUM 1200UF 20% 50V RADIAL
UPW1H122MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1200UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 6,308
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.219 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.61 A @ 100 kHz |
| Impedance | 29 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1H122MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXZ500ELL122MM25S | United Chemi-Con | CAP ALUM 1200UF 20% 50V RADIAL | 93% | View |
| ELXZ500ELL122ML30S | United Chemi-Con | CAP ALUM 1200UF 20% 50V RADIAL | 92% | View |
| 601D128G040GT2 | Vishay Sprague | CAP ALUM 1200UF 40V AXIAL | 86% | View |
| MAL224661122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 50V RADIAL | 85% | View |
| EEU-FC1E122 | Panasonic Electronic Components | CAP ALUM 1200UF 20% 25V RADIAL | 68% | View |
| B41607B8128M2 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 63V SNAP | 56% | View |
