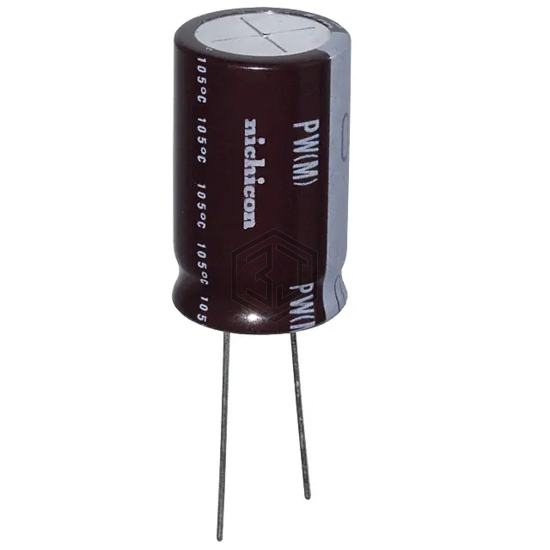

CAP ALUM 3900UF 20% 25V RADIAL
UPW1E392MHH6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3900UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 3,722
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.635 A @ 100 kHz |
| Impedance | 16 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1E392MHH6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXV250ELL392ML40S | United Chemi-Con | CAP ALUM 3900UF 20% 25V RADIAL | 94% | View |
| MAL214656392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 25V RADIAL | 86% | View |
| ELXZ160ELL392ML25S | United Chemi-Con | CAP ALUM 3900UF 20% 16V RADIAL | 70% | View |
| 757D398M010EK3O | Vishay Sprague | CAP ALUM 3900UF 20% 10V RADIAL | 61% | View |
| EEU-FK1A392B | Panasonic Electronic Components | CAP ALUM 3900UF 20% 10V RAD TH | 59% | View |
| ELXV100ELL392ML25S | United Chemi-Con | CAP ALUM 3900UF 20% 10V RADIAL | 54% | View |
Submit your RFQ for UPW1E392MHH6 and get a quote within 24 hours.
