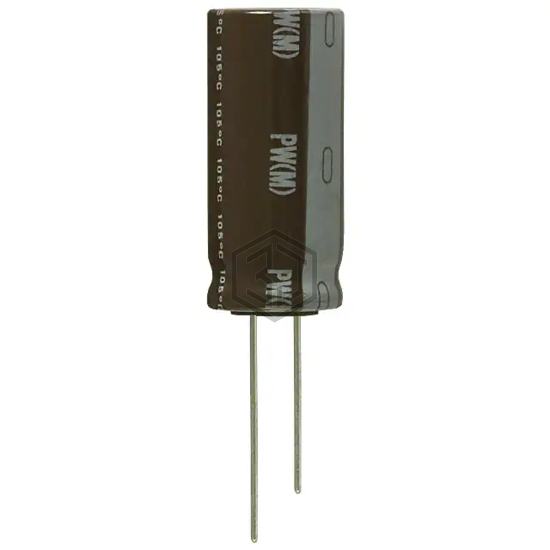

CAP ALUM 3900UF 20% 25V RADIAL
UPW1E392MHH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3900UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 5,682
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.678 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.15 A @ 100 kHz |
| Impedance | 16 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1E392MHH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41888E4398M | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 16V RADIAL | 76% | View |
| MAL224655392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 16V RADIAL | 70% | View |
| MAL224665392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 16V RADIAL | 70% | View |
| ELXZ160ELL392MM20S | United Chemi-Con | CAP ALUM 3900UF 20% 16V RADIAL | 69% | View |
| EEU-FK1C392S | Panasonic Electronic Components | CAP ALUM 3900UF 20% 16V RAD TH | 69% | View |
| B41858C4398M9 | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 16V RADIAL | 67% | View |
Submit your RFQ for UPW1E392MHH and get a quote within 24 hours.
