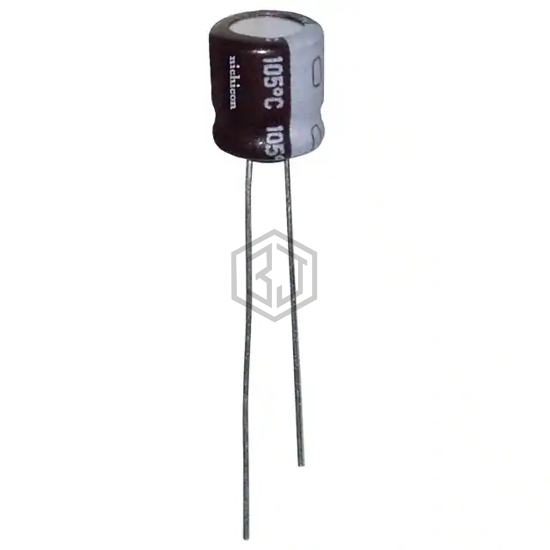

CAP ALUM 39UF 20% 25V RADIAL
UPW1E390MDH6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 39UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 4,788
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 60 mA @ 120 Hz |
| Ripple Current @ High Frequency | 200 mA @ 100 kHz |
| Impedance | 450 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1E390MDH6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1E390MDD | Nichicon | CAP ALUM 39UF 20% 25V RADIAL | 82% | View |
| UPJ1E390MDD1TA | Nichicon | CAP ALUM 39UF 20% 25V RADIAL | 76% | View |
| LXY50VB39RM6X11LL | United Chemi-Con | CAP ALUM 39UF 20% 50V RADIAL | 70% | View |
| 672D396H150ET5J | Vishay Sprague | CAP ALUM 39UF 150V RADIAL | 56% | View |
| 672D396H100DT5C | Vishay Sprague | CAP ALUM 39UF 100V RADIAL | 56% | View |
| ELXZ630ELL390MF15D | United Chemi-Con | CAP ALUM 39UF 20% 63V RADIAL | 51% | View |
