CAP ALUM 27UF 20% 25V RADIAL

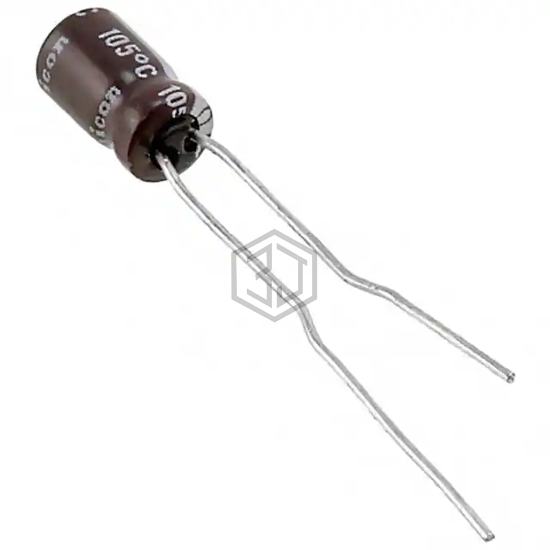

UPW1E270MDD1TP is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 27UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 8,581
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 27 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 36 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 1.3 Ohms |
| Lead Spacing | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1E270MDD1TP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEA-FC0J270H | Panasonic Electronic Components | CAP ALUM 27UF 20% 6.3V RADIAL | 65% | View |
| EEA-FC0J270 | Panasonic Electronic Components | CAP ALUM 27UF 20% 6.3V RADIAL | 65% | View |
| EEA-FC0J270B | Panasonic Electronic Components | CAP ALUM 27UF 20% 6.3V RADIAL | 65% | View |
| 860160272002 | Würth Elektronik | CAP ALUM 27UF 20% 10V RADIAL | 64% | View |
| ELXY350ETD270MEB5D | United Chemi-Con | CAP ALUM 27UF 20% 35V RADIAL | 64% | View |
| 672D276F200EN4D | Vishay Sprague | CAP ALUM 27UF 200V RADIAL | 56% | View |
