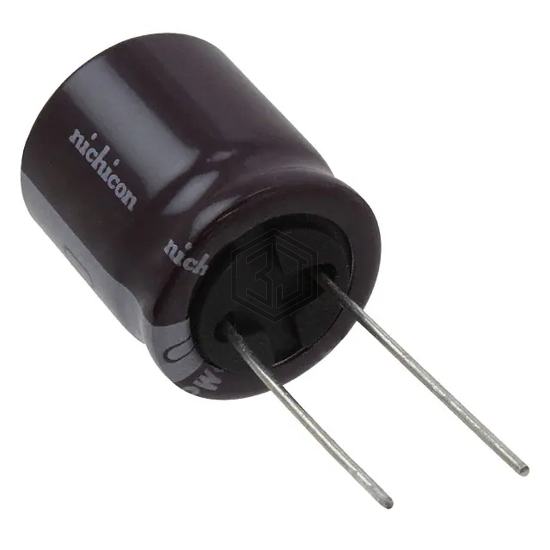

CAP ALUM 2200UF 20% 25V RADIAL
UPW1E222MHD6TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 157
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.117 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.49 A @ 100 kHz |
| Impedance | 28 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1E222MHD6TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SEK222M025ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 25V RADIAL | 100% | View |
| B41890A5228M | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 25V RADIAL | 92% | View |
| RXK222M1VBK-1636S | SURGE | CAP ALUM 2200UF 20% 35V RADIAL | 86% | View |
| 50RXF2200MEFC18X30 | Rubycon | CAP ALUM 2200UF 20% 50V RADIAL | 70% | View |
| 25PX2200MEFCG412.5X20 | Rubycon | CAP ALUM 2200UF 20% 25V RADIAL | 68% | View |
| UPA1A222MPD | Nichicon | CAP ALUM 2200UF 20% 10V RADIAL | 63% | View |
