CAP ALUM 2200UF 20% 25V RADIAL

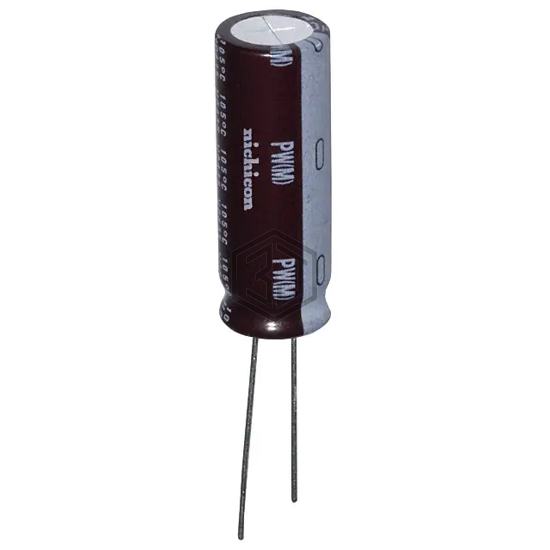

UPW1E222MHD3 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 7,390
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.134 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.51 A @ 100 kHz |
| Impedance | 22 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1E222MHD3 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1E222MHD6TN | Nichicon | CAP ALUM 2200UF 20% 25V RADIAL | 90% | View |
| MAL213660222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 35V RADIAL | 80% | View |
| ELXZ500ELL222MM35S | United Chemi-Con | CAP ALUM 2200UF 20% 50V RADIAL | 75% | View |
| 25WXA2200MEFCGC16X20 | Rubycon | CAP ALUM 2200UF 20% 25V RADIAL | 68% | View |
| RXK222M1CBK-1620S | SURGE | CAP ALUM 2200UF 20% 16V RADIAL | 66% | View |
| MAL213651222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 50V RADIAL | 65% | View |
Submit your RFQ for UPW1E222MHD3 and get a quote within 24 hours.
