CAP ALUM 22UF 20% 25V RADIAL

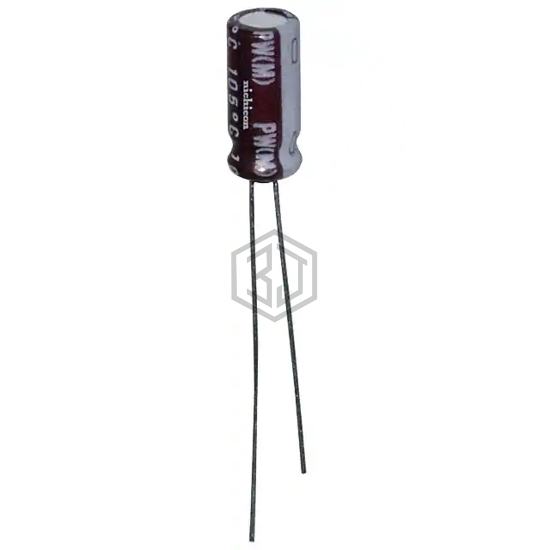

UPW1E220MDH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 7,735
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 54 mA @ 120 Hz |
| Ripple Current @ High Frequency | 180 mA @ 100 kHz |
| Impedance | 600 mOhms |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1E220MDH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URZ1E220MDD1TD | Nichicon | CAP ALUM 22UF 20% 25V RADIAL | 88% | View |
| UPW1C220MDD1TA | Nichicon | CAP ALUM 22UF 20% 16V RADIAL | 88% | View |
| UVZ1E220MDH | Nichicon | CAP ALUM 22UF 20% 25V RADIAL | 88% | View |
| 860160572003 | Würth Elektronik | CAP ALUM 22UF 20% 35V RADIAL | 66% | View |
| 50PX22MEFC5X11 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL | 60% | View |
| 63PX22MEFC5X11 | Rubycon | CAP ALUM 22UF 20% 63V RADIAL | 60% | View |
Submit your RFQ for UPW1E220MDH and get a quote within 24 hours.
