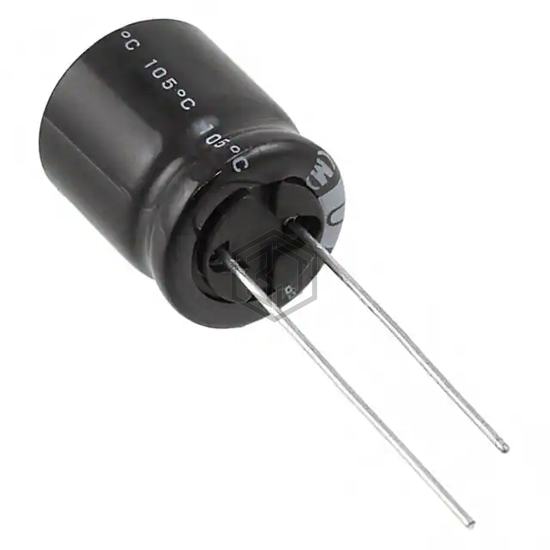

CAP ALUM 1800UF 20% 25V RADIAL
UPW1E182MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 7,312
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.879 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.21 A @ 100 kHz |
| Impedance | 29 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1E182MHD6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FK1E182B | Panasonic Electronic Components | CAP ALUM 1800UF 20% 25V RAD TH | 95% | View |
| MAL214636182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 25V RADIAL | 93% | View |
| EEU-FK1E182S | Panasonic Electronic Components | CAP ALUM 1800UF 20% 25V RAD TH | 93% | View |
| 16JXF1800MEFC10X25 | Rubycon | CAP ALUM 1800UF 20% 16V RADIAL | 65% | View |
| ELXZ100ELL182MJ30S | United Chemi-Con | CAP ALUM 1800UF 20% 10V RADIAL | 60% | View |
| ELXV100ETE182MK20S | United Chemi-Con | CAP ALUM 1800UF 20% 10V RADIAL | 52% | View |
