CAP ALUM 1500UF 20% 25V RADIAL

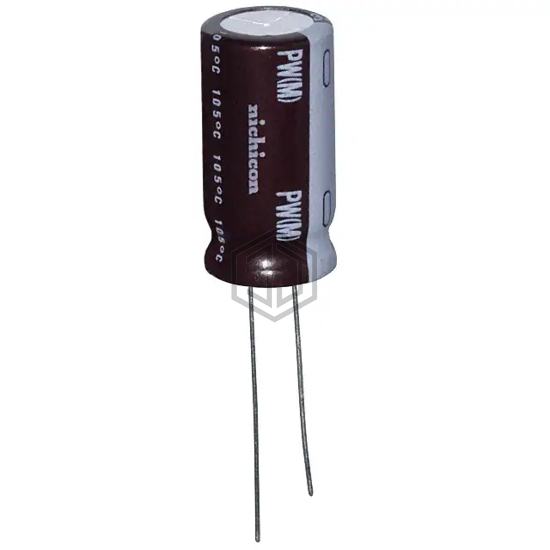

UPW1E152MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 2,008
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.658 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.95 A @ 100 kHz |
| Impedance | 30 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1E152MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214656152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 25V RADIAL | 98% | View |
| MALREKB05FE415E00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 25V RADIAL | 84% | View |
| MAL215051152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 50V RADIAL | 75% | View |
| ELXZ630ELL152MM35S | United Chemi-Con | CAP ALUM 1500UF 20% 63V RADIAL | 70% | View |
| B41858C6158M9 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 50V RADIAL | 68% | View |
| 158KXM010M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1500UF 20% 10V RADIAL | 65% | View |
Submit your RFQ for UPW1E152MHD6 and get a quote within 24 hours.
