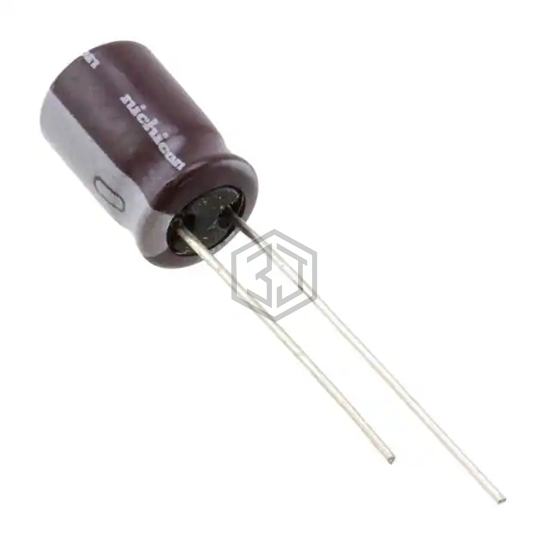

CAP ALUM 150UF 20% 25V RADIAL
UPW1E151MPD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 7,800
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 360.75 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 117 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1E151MPD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1V151BJ | Panasonic Electronic Components | CAP ALUM 150UF 20% 35V RADIAL | 89% | View |
| UPS1E151MPD1TA | Nichicon | CAP ALUM 150UF 20% 25V RADIAL | 71% | View |
| 50WXA150MEFCT810X9 | Rubycon | CAP ALUM 150UF 20% 50V RADIAL | 65% | View |
| 50WXA150MEFC10X9 | Rubycon | CAP ALUM 150UF 20% 50V RADIAL | 65% | View |
| 678D167H040DG5J | Vishay Sprague | CAP ALUM 160UF 40V RADIAL | 65% | View |
| MLSH161M200JK0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 160UF 20% 200V RADIAL | 50% | View |
Submit your RFQ for UPW1E151MPD1TA and get a quote within 24 hours.
