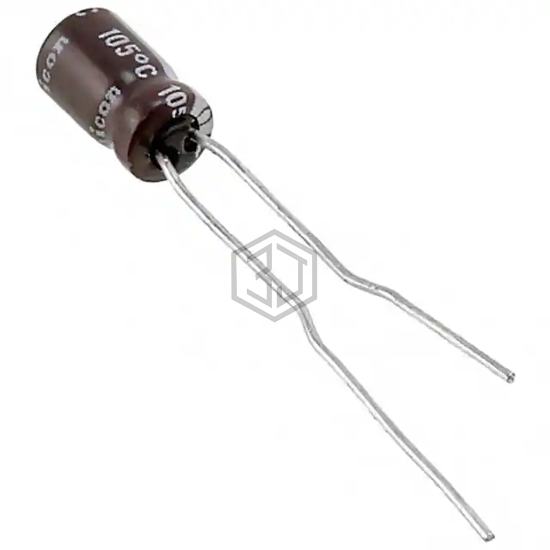

CAP ALUM 10UF 20% 25V RADIAL
UPW1E100MDD6TP is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 4,201
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 19.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 65 mA @ 100 kHz |
| Impedance | 2 Ohms |
| Lead Spacing | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1E100MDD6TP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UEP1E100MDD1TA | Nichicon | CAP ALUM 10UF 20% 25V RADIAL | 100% | View |
| 610D106G025KD2 | Vishay Sprague | CAP ALUM 10UF 25V AXIAL | 100% | View |
| EKMG250ETD100ME11D | United Chemi-Con | CAP ALUM 10UF 20% 25V RADIAL | 85% | View |
| EKRG250ELL100MD07D | United Chemi-Con | CAP ALUM 10UF 20% 25V RADIAL | 85% | View |
| 517D106M016JA6AE3 | Vishay Sprague | CAP ALUM 10UF 20% 16V RADIAL | 71% | View |
| ELXY160ETA100MD05D | United Chemi-Con | CAP ALUM 10UF 20% 16V RADIAL | 71% | View |
