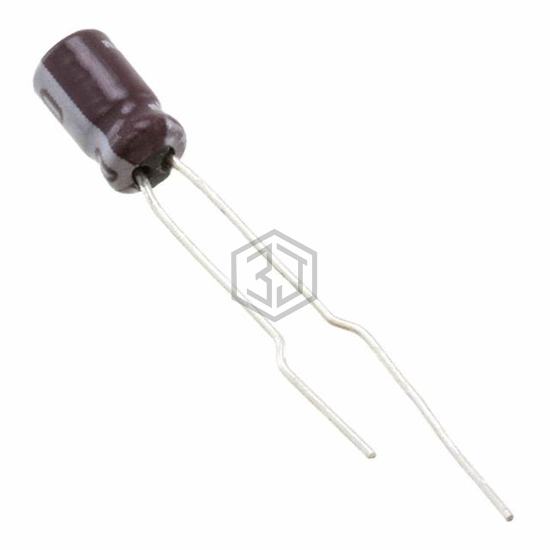

CAP ALUM 10UF 20% 25V RADIAL
UPW1E100MDD6TE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,246
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 19.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 65 mA @ 100 kHz |
| Impedance | 2 Ohms |
| Lead Spacing | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1E100MDD6TE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UMF1E100MDD1TP | Nichicon | CAP ALUM 10UF 20% 25V RADIAL | 77% | View |
| UEP1C100MDD1TA | Nichicon | CAP ALUM 10UF 20% 16V RADIAL | 74% | View |
| EKMG350ELL100ME11D | United Chemi-Con | CAP ALUM 10UF 20% 35V RADIAL | 69% | View |
| UPV1H100MFD1TD | Nichicon | CAP ALUM 10UF 20% 50V RADIAL | 67% | View |
| UST1C100MDD1TP | Nichicon | CAP ALUM 10UF 20% 16V RADIAL | 67% | View |
| 860160372001 | Würth Elektronik | CAP ALUM 10UF 20% 16V RADIAL | 65% | View |
