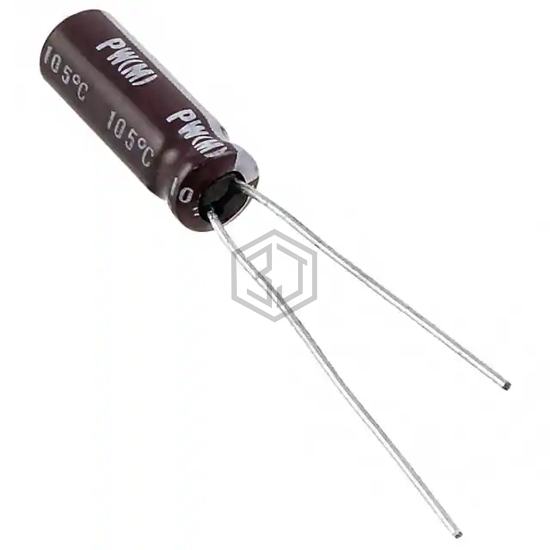

CAP ALUM 82UF 20% 16V RADIAL
UPW1C820MDD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 1,741
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 152.75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 235 mA @ 100 kHz |
| Impedance | 500 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1C820MDD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXY160ELL820ME15D | United Chemi-Con | CAP ALUM 82UF 20% 16V RADIAL | 100% | View |
| UPM1C820MED1TD | Nichicon | CAP ALUM 82UF 20% 16V RADIAL | 97% | View |
| B41042A4826M | EPCOS - TDK Electronics | CAP ALUM 82UF 20% 16V RADIAL | 92% | View |
| UPV1E820MGD | Nichicon | CAP ALUM 82UF 20% 25V RADIAL | 78% | View |
| UPM1E820MED1TA | Nichicon | CAP ALUM 82UF 20% 25V RADIAL | 75% | View |
| B41043A5826M | EPCOS - TDK Electronics | CAP ALUM 82UF 20% 25V RADIAL | 72% | View |
Submit your RFQ for UPW1C820MDD1TA and get a quote within 24 hours.
