CAP ALUM 82UF 20% 16V RADIAL

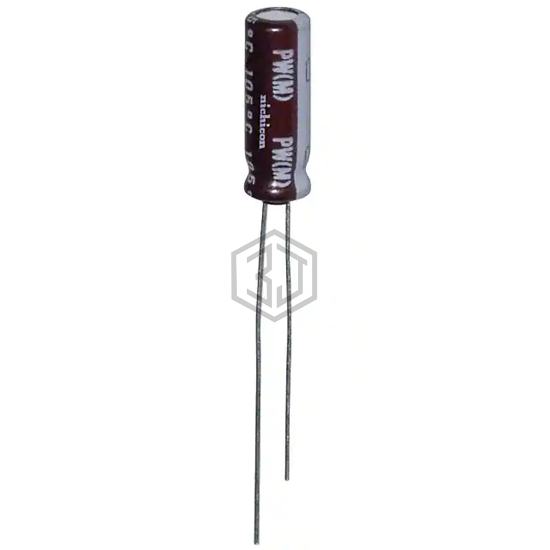

UPW1C820MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 3,823
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 152.75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 235 mA @ 100 kHz |
| Impedance | 500 mOhms |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1C820MDD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860080372004 | Würth Elektronik | CAP ALUM 82UF 20% 16V RADIAL | 90% | View |
| EEU-FC1A820B | Panasonic Electronic Components | CAP ALUM 82UF 20% 10V RADIAL | 70% | View |
| 860160272008 | Würth Elektronik | CAP ALUM 82UF 20% 10V RADIAL | 64% | View |
| ELXV350ELL820MF15D | United Chemi-Con | CAP ALUM 82UF 20% 35V RADIAL | 64% | View |
| 600D826G030DD4 | Vishay Sprague | CAP ALUM 82UF 30V AXIAL | 60% | View |
| 604D820F200GJ7 | Vishay Sprague | CAP ALUM 82UF 200V AXIAL | 56% | View |
Submit your RFQ for UPW1C820MDD and get a quote within 24 hours.
