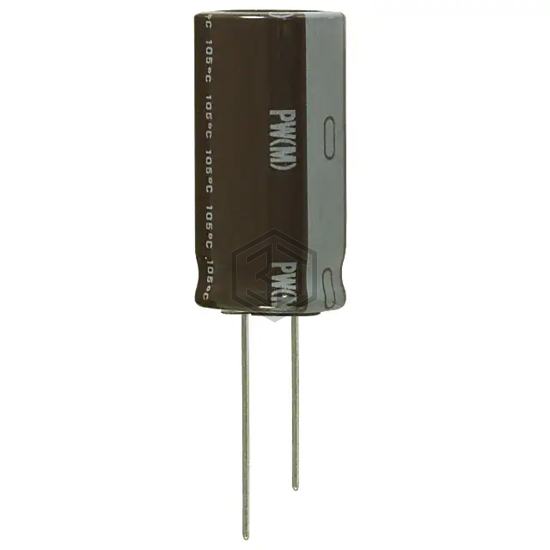

CAP ALUM 6800UF 20% 16V RADIAL
UPW1C682MHH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,306
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.128 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.68 A @ 100 kHz |
| Impedance | 15 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1C682MHH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LXZ16VB682M16X40LL | United Chemi-Con | CAP ALUM 6800UF 20% 16V RADIAL | 100% | View |
| B41858C4688M9 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 16V RADIAL | 94% | View |
| B41888C3688M | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 10V RADIAL | 81% | View |
| EEU-FK1A682 | Panasonic Electronic Components | CAP ALUM 6800UF 20% 10V RAD TH | 72% | View |
| 381LL682M035A032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 35V SNAP | 72% | View |
| ELXZ6R3ELL682MK40S | United Chemi-Con | CAP ALUM 6800UF 20% 6.3V RADIAL | 70% | View |
Submit your RFQ for UPW1C682MHH and get a quote within 24 hours.
