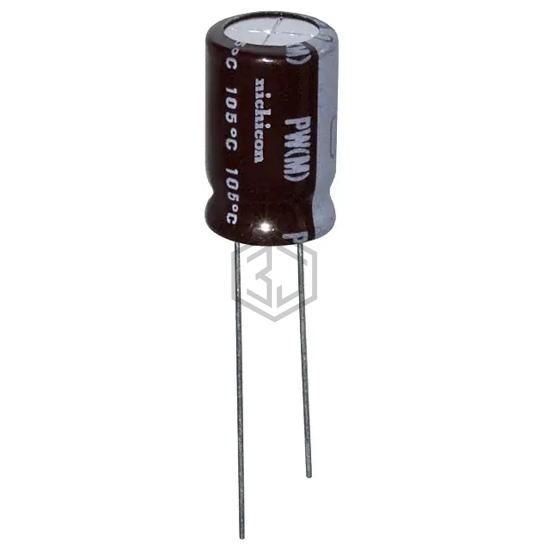

CAP ALUM 680UF 20% 16V RADIAL
UPW1C681MPH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,613
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 787.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.05 A @ 100 kHz |
| Impedance | 68 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1C681MPH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVY1E681MHD4 | Nichicon | CAP ALUM 680UF 20% 25V RADIAL | 71% | View |
| MAL216031681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 50V RADIAL | 66% | View |
| MAL216061681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 50V RADIAL | 66% | View |
| MAL213669681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 100V RADIAL | 61% | View |
| B41888D7687M000 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 35V RADIAL | 61% | View |
| EEU-FC1V681 | Panasonic Electronic Components | CAP ALUM 680UF 20% 35V RADIAL | 56% | View |
Submit your RFQ for UPW1C681MPH and get a quote within 24 hours.
