CAP ALUM 680UF 20% 16V RADIAL

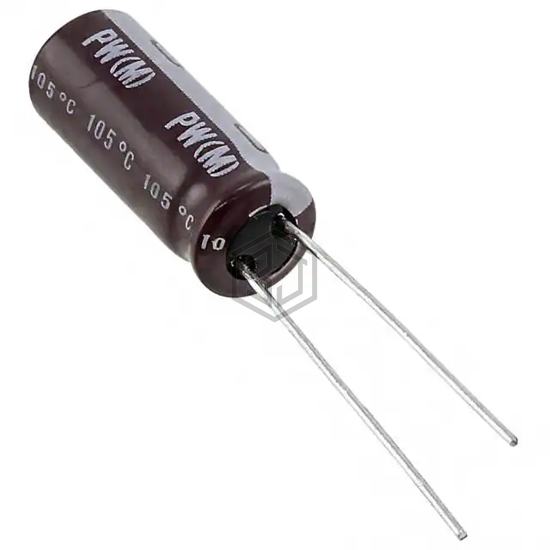

UPW1C681MPD6TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 6,090
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 746.25 mA @ 120 Hz |
| Ripple Current @ High Frequency | 995 mA @ 100 kHz |
| Impedance | 65 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1C681MPD6TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D687H015EK5C | Vishay Sprague | CAP ALUM 680UF 15V RADIAL | 96% | View |
| ELXY160ETD681MJ20S | United Chemi-Con | CAP ALUM 680UF 20% 16V RADIAL | 95% | View |
| UPA1C681MPD1TD | Nichicon | CAP ALUM 680UF 20% 16V RADIAL | 93% | View |
| 672D687H025EU5C | Vishay Sprague | CAP ALUM 680UF 25V RADIAL | 71% | View |
| 35WXA680MEFCG412.5X16 | Rubycon | CAP ALUM 680UF 20% 35V RADIAL | 69% | View |
| MAL226030681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 35V RADIAL | 68% | View |
Submit your RFQ for UPW1C681MPD6TA and get a quote within 24 hours.
