CAP ALUM 56UF 20% 16V RADIAL

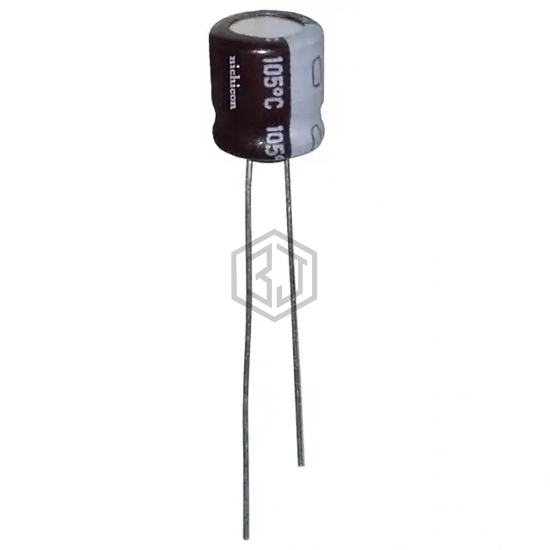

UPW1C560MDH6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,233
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 60 mA @ 120 Hz |
| Ripple Current @ High Frequency | 200 mA @ 100 kHz |
| Impedance | 450 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1C560MDH6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXW560M1CBK-0511S | Surge | CAP ALUM 16V POLAR | 86% | View |
| UPV1C560MFD1TA | Nichicon | CAP ALUM 56UF 20% 16V RADIAL | 82% | View |
| UPM1C560MDD | Nichicon | CAP ALUM 56UF 20% 16V RADIAL | 81% | View |
| UPW1E560MDD1TD | Nichicon | CAP ALUM 56UF 20% 25V RADIAL | 80% | View |
| 600D566F050DD4 | Vishay Sprague | CAP ALUM 56UF 50V AXIAL | 58% | View |
| 600D566F150DX5 | Vishay Sprague | CAP ALUM 56UF 150V AXIAL | 56% | View |
Submit your RFQ for UPW1C560MDH6 and get a quote within 24 hours.
