CAP ALUM 33UF 20% 16V RADIAL

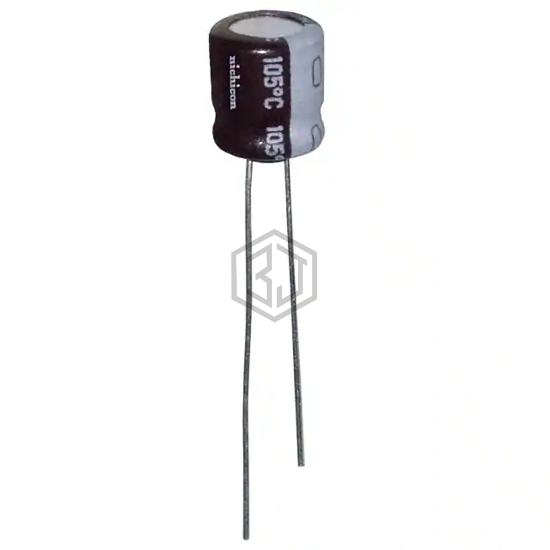

UPW1C330MDD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 2,596
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 60 mA @ 120 Hz |
| Ripple Current @ High Frequency | 200 mA @ 100 kHz |
| Impedance | 450 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1C330MDD6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URZ1A330MDD1TA | Nichicon | CAP ALUM 33UF 20% 10V RADIAL | 69% | View |
| EY1H330MPN6311U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 67% | View |
| EY1V330MP20511EP5U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 66% | View |
| EKMG630ETC330MF11D | United Chemi-Con | CAP ALUM 33UF 20% 63V RADIAL | 64% | View |
| EEU-FC1V330H | Panasonic Electronic Components | CAP ALUM 33UF 20% 35V RADIAL | 52% | View |
| EEU-FC1H330H | Panasonic Electronic Components | CAP ALUM 33UF 20% 50V RADIAL | 51% | View |
Submit your RFQ for UPW1C330MDD6 and get a quote within 24 hours.
