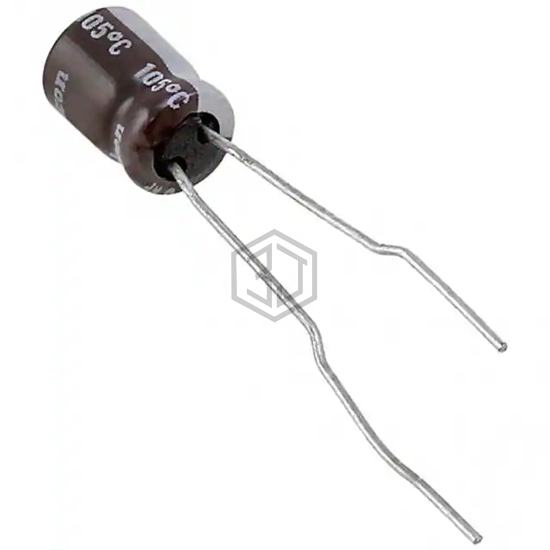

CAP ALUM 27UF 20% 16V RADIAL
UPW1C270MDD1TP is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 27UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 7,431
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 27 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 36 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 950 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1C270MDD1TP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEA-FC1C270B | Panasonic Electronic Components | CAP ALUM 27UF 20% 16V RADIAL | 79% | View |
| 860160372004 | Würth Elektronik | CAP ALUM 27UF 20% 16V RADIAL | 68% | View |
| UPV1V270MFD | Nichicon | CAP ALUM 27UF 20% 35V RADIAL | 66% | View |
| B41866C6276M008 | EPCOS - TDK Electronics | CAP ALUM 50V POLAR | 63% | View |
| B41866C6276M000 | EPCOS - TDK Electronics | CAP ALUM 50V POLAR | 63% | View |
| UPJ1H270MDD | Nichicon | CAP ALUM 27UF 20% 50V RADIAL | 56% | View |
